Huron |
||
|---|---|---|

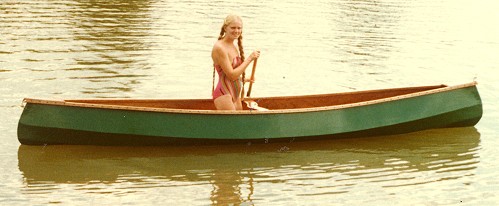

| #308 | a 13' or 15' multi-chine canoe | Build in PLYWOOD |
| Characteristics | |||
|---|---|---|---|
| 13' | 15' | ||
| Length overall | 12'-9" | 15'-0" | |
| Beam | 3'-0" | 3'-0" | |
| Depth amidships | 13 1/2" | 13 1/2" | |
| Depth at bows | 19 1/2" | 19 1/2" | |
| Weight (approx.) | 79 lbs. | 95 lbs. | |
| Hull type: Double-ended, multi-chine canoe designed for sheet
plywood planking. Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the frames from the aft end of the stem to the transom a proportional amount. We do not recommend increasing the beam. |
|||
| Photographs | Bill of Materials | Return |
|---|
