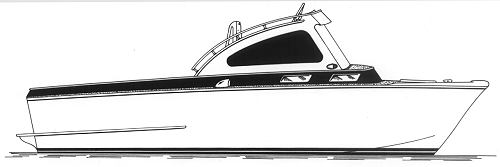

Blue Fin |
||
|---|---|---|
| #779 | a 19 1/2' trailerable inboard cruiser | Build in PLYWOOD |
| Characteristics | |
|---|---|
| Length overall | 19'-6" |
| Length waterline | 16'-8" |
| Beam | 7'-9" |
| Hull depth forward | 3'-10" |
| Hull depth at transom | 2'-9" |
| Displacement | 2875 lbs. |
| Hull weight (approx.) | 920 lbs. |
| Cabin headroom | 4'-11" |
| Cockpit size | 8'-4" x 6' |
| Sleeping accommodations | 2 |
| Hull type: Vee bottom, hard chine hull with bulbous keel and
reverse curve at chine. Bottom designed for double diagonal plywood planking,
sides developed for sheet plywood planking. Power: Single centrally located inboard motor to 900 lbs. and not more than 43" overall length. Can the hull be extended or shortened? No. We also do not recommend increasing the beam. Trailer: Designed for use with Glen-L Series 3800 boat trailer plans. |
|
| Photographs | Bill of Materials | Notes | Return |
|---|
