Gypsy
|
| #955 |

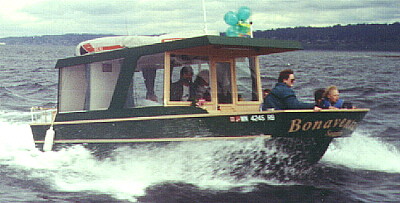

a 20' trailerable
houseboat |
Build in PLYWOOD |
| Characteristics |
| Length overall |
20'-1" |
| Length waterline |
17'-0" |
| Beam |
7'-11" |
| Hull draft |
9" |
| Freeboard forward |
2'-10" |
| Freeboard aft |
2'-7" |
| Hull depth |
3'-5" |
| Height overall |
7'-5" |
| Displacement |
3250 lbs. |
| Hull weight (approx.) |
1700 lbs. |
| Fuel capacity |
70 gals. |
| Fresh water capacity |
34 gals. |
| Headroom minimum |
6'-4" |
| Sleeping accommodations |
4 |
| Cockpit size |
7' x 7' |
- Hull type: Vee bottom high speed planing hull developed for sheet plywood
construction.
- Power: Single or twin long shaft outboard motors, or stern mounted inboard
outdrive units. Total engine weight not to exceed 600 lbs.
- Can the hull be extended or shortened? No, cockpit seat pattern would not
work. We do not recommend increasing the beam.
- Trailer: Designed for use with Glen-L Series 2900/3800 boat trailer plans.
|
Glen-L marine designs / www.glen-l.com / Boat
plans for the home builder
|
