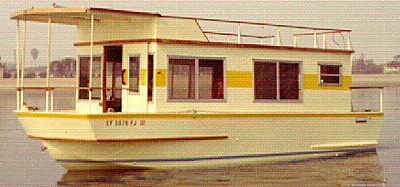

Quest
|
| #966 |
a 23' trailerable
houseboat |
Build in PLYWOOD |
| Characteristics |
| Length overall |
23'-4" |
| Length waterline |
20'-9" |
| Beam |
7'-11" |
| Hull draft (with skeg) |
13" |
| Freeboard forward |
3'-8" |
| Freeboard aft |
3'-3" |
| Hull depth |
4'-5" |
| Height overall |
8' |
| Displacement |
4630 lbs. |
| Fuel capacity |
80 gals. |
| Fresh water capacity |
40 gals. |
| Headroom minimum |
6' to 6'-6" |
| Sleeping accommodations |
5 |
| Cockpit size |
7' x 5' |
| Cockpit depth |
2'-3" |
- Hull type: Vee bottom high speed planing hull developed for sheet plywood
construction.
- Power: Single or twin long shaft outboard motors, or stern mounted inboard
outdrive units. Total engine weight not to exceed 600 lbs.
- Can the hull be extended or shortened? No, cockpit sole pattern would not
work. We do not recommend increasing the beam.
- Trailer: Designed for use with Glen-L Series 3800 boat trailer plans.
|
Glen-L marine designs / www.glen-l.com / Boat
plans for the home builder
|
