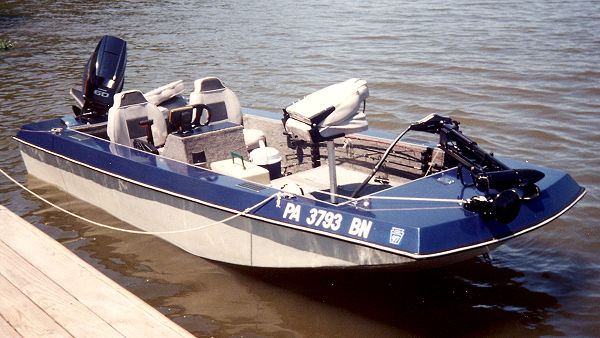

Bass Boat
|
| #551 |
a 15' outboard bass fishing
boat |
Build in PLYWOOD |
| Characteristics |
| Length overall |
15'-5" |
| Beam |
5'-4" |
| Hull depth |
26" |
| Cockpit depth maximum |
1'-6" |
| Cockpit size |
11' x 4' |
| Average passengers |
2 |
| Hull weight (approx.) |
425 lbs. |
- Hull type: Garvey with vee bottom developed for sheet plywood
planking.
- Power: Long shaft outboard motor to 70 hp. Short shaft motor can be used if
transom modified. Electric trolling motors may be used at bow and stern.
Inboard/outboard may be used up to 400 lbs. although the silhouette may project
above deck line and reduce cockpit space. Outboard motors preferred, I/O
installation is not detailed.
- Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the
frames from the aft end of the stem to the transom a proportional amount. We do
not recommend increasing the beam.
- Trailer: Designed for use with Glen-L Series 1000 boat trailer plans.
|
