Party Boat

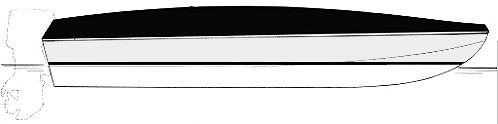

#817 a 20' 6" or 22' 4" outboard deck boat Build in PLYWOOD




Characteristics
Length overall 20'-6" or 22'-4"
Beam 8'-3"
Hull depth 3'-8"
Hull weight (approx.): 1500 lbs.
Displacement @ 11" designed waterline 3100 lbs.
Cockpit Length, seat back to seat back: 13'-9"
Width, maximum: 7'
Passengers 8
  • Hull Type: Vee bottom 15o hard chine hull developed for sheet plywood.
  • Power: Single or twin outboard motors; long or extra-long shaft for single, extra-long for twins. Optional power stern mounted inboard/outboard, v-drive or jet pump optional but not detailed.
  • Can the hull be extended or shortened? Not beyond the lengths listed. We do not recommend increasing the beam.
  • Trailer: For use with Glen-L Series 3800 trailer plans.
