Glen-L 14 |
||
|---|---|---|

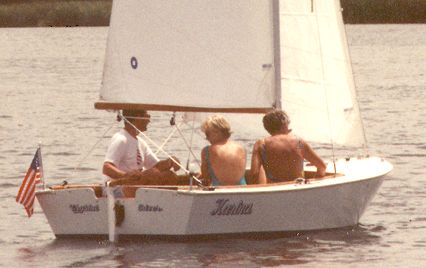

| #118 | a 14' sloop | Build in PLYWOOD |
| Characteristics | |||
|---|---|---|---|
| Length overall | 14'-0" | ||
| Beam | 6'-0" | ||
| Depth amidships | 2'-6" | ||
| Draft (board up) | 8" | ||
| Draft (board down) | 3'-2" | ||
| Weight (approx.) | 325 lbs. | ||
| Cockpit size | 8'-9" x 4'-10" | ||
| Average passengers | 2-4 | ||
| Sail area | Main - 73 sq. ft. Jib - 45 sq. ft. Total - 118 sq. ft. |
||
| Hull type: Vee bottom hard chine hull developed for 1/4"
sheet plywood planking. Sail type: Jibhead sloop-rig with centerboard. Power: Short shaft outboard motor to 5 hp. Trailer: Designed for use with Glen-L Series 1000 boat trailer plans. |
|||
