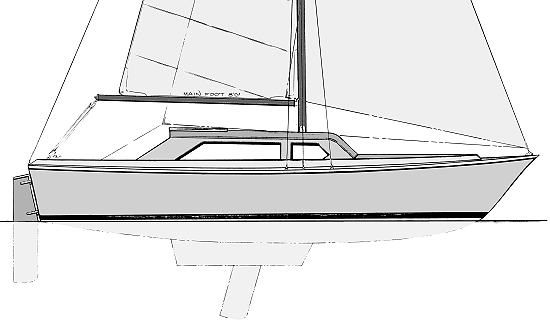

Glen-L 6.9 |
||
|---|---|---|
| #112 | a 23' trailerable sloop | Build in FIBERGLASS |
| Characteristics | |||
|---|---|---|---|
| Length overall | 22'-7 1/2" (6.9M) | ||
| Waterline length | 19'-4 1/2" | ||
| Beam | 7'-10" | ||
| Freeboard forward | 3'-0" | ||
| Freeboard aft | 2'-6" | ||
| Draft (board up) | 24" | ||
| Draft (board down) | 4'-4" | ||
| Height (board up to cabin top) | 6'-3" | ||
| Displacement | 3186 lbs. | ||
| Hull weight (approx.) | 1500 lbs. | ||
| Ballast weight (with board) | 960 lbs. | ||
| Water capacity | 12 gals. | ||
| Cabin headroom | 4'-8" | ||
| Cockpit size | 5'-0" x 5'-4" | ||
| Average passengers | 2-4 | ||
| Sleeping accommodations | 4 | ||
| Sail area | Main - 94 sq. ft. Jib - 102 sq. ft. Genoa - 190 sq. ft. Totals - 196 or 284 sq. ft. |
||
| Hull type: Round bilge hull design with combination
center/ballast keel unit. Designed for "one-off" fiberglass
construction using fiberglass planking laminate or PVC foam sandwich core with
fiberglass laminate. Sail type: Masthead sloop. Power: Outboard motor to 10 hp mounted on removable transom bracket (optional). Trailer: Designed for use with Glen-l Series 3800 boat trailer plans. |
|||
