Aurora |
||
|---|---|---|

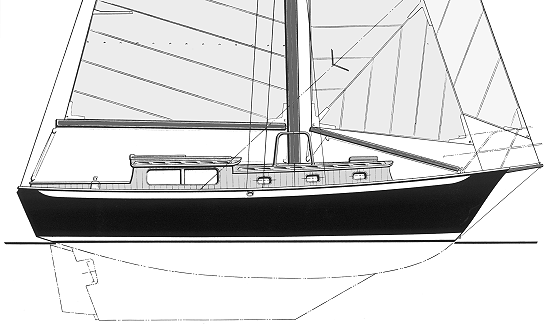

| #251 | a 31' cruising cutter rigged sailboat | Build in STEEL |
| Characteristics | |||
|---|---|---|---|
| Length overall (on deck) | 31'-0" | ||
| Length overall (with bowsprit) | 33'-0" | ||
| Length waterline | 25'-0" | ||
| Beam | 12'-0" | ||
| Draft | 5'-0" | ||
| Freeboard forward | 4'-10" | ||
| Freeboard aft | 3'-7" | ||
| Displacement (at D.W.L.) | 16,800 lbs. | ||
| Ballast weight | 6,000 lbs. | ||
| Weight of steel components (estimated) | 6,600 lbs. | ||
| Cabin headroom | 6'-2" to 6'-4" | ||
| Fuel capacity | 85 gals. | ||
| Water capacity | 130 gals. | ||
| Sleeping accommodations | 6 | ||
| Sail area | Main - 297 sq. ft. Foretriangle - 349 sq. ft. Total - 646 sq. ft. |
||
| Hull type: Multi-chine sheet steel hull with full length
internal ballast keel. Ballast: Concrete and scrap steel. Sail type: Masthead cutter rig with bowsprit and club-footed jib. Power: Single inboard diesel engine of 25-30 shp with vee drive. Construction: Welded steel hull, keel, deck and cockpit with concrete and scrap steel ballast. Cabin superstructure, cockpit, and interior of lumber and plywood with exterior surfaces sheathed in fiberglass or equivalent. |
|||
| Photographs | Bill of Materials | Notes | Return |
|---|
