Reliant-FG
|
||
|---|---|---|
| #213 #214 |
a 49' world cruising sailboat | Build in COLD-MOLDED or FIBERGLASS |
| Characteristics | |||
|---|---|---|---|
| Length overall (on deck) | 49'-0" | ||
| Length overall (with bowsprit) | 56'-0" | ||
| Length waterline | 40'-0" | ||
| Beam | 14'-4" | ||
| Draft | 6'-6" | ||
| Freeboard forward | 6'-11" | ||
| Freeboard aft | 4'-6" | ||
| Displacement (at D.W.L.) | 34,500 lbs. | ||
| Ballast weight | 12,400 lbs. | ||
| Cabin headroom | 6'-4" to 6'-7" | ||
| Fuel capacity | 150 gals. | ||
| Water capacity | 220 gals. | ||
| Sleeping accommodations | 8-10 | ||

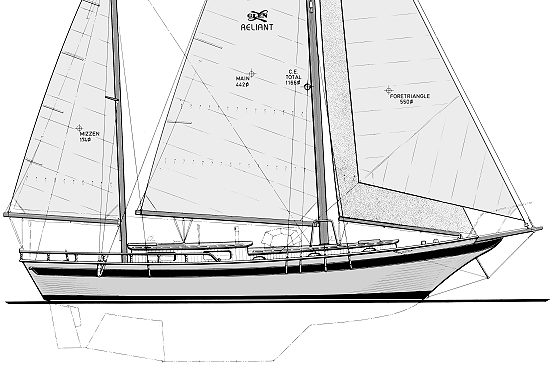

| Sail area | Main - 442 sq. ft. Foretriangle - 550 sq. ft. Mizzen - 174 sq. ft. Total - 1166 sq. ft. |
||
| Hull type: Round bilge hull with fixed ballast keel. Optional
separate keel and rudder/skeg configuration, or single long keel. Sail type: Masthead ketch rig with bowsprit and club-footed jib. Power: Single inboard diesel or gasoline engine of 40 to 70 hp with vee-drive. Ballast: Steel or iron. Construction: Plans available for "one-off" fiberglass using either PVC foam sandwich core or fiberglass planking with fiberglass laminates, and for wood diagonal cold-molded construction, using plywood or veneers. |
|||
