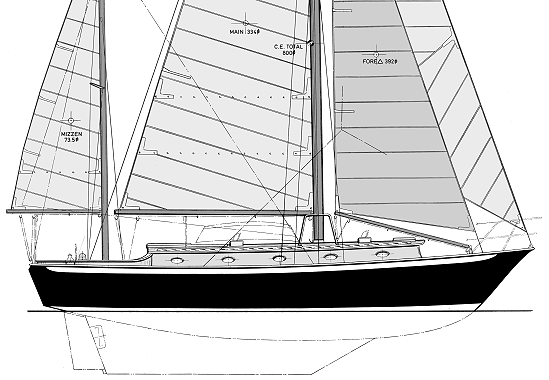

Spirit |
||
|---|---|---|
| #253 | a 39' ketch or cutter | Build in STEEL |
| Characteristics | |||
|---|---|---|---|
| Length overall | 39'-2" | ||
| Length waterline | 31'-8" | ||
| Beam | 12'-0" | ||
| Draft | 5'-0" | ||
| Freeboard forward | 4'-11" | ||
| Freeboard aft | 3'-8" | ||
| Displacement (at D.W.L.) | 22,625 lbs. | ||
| Ballast weight | 7,500 lbs. | ||
| Weight of steel components (estimated) | 10,000 lbs. | ||
| Cabin headroom | 6'-3 to 6'-6" | ||
| Fuel capacity | 70 gals. | ||
| Water capacity | 170 gals. | ||
| Sleeping accommodations | 6 | ||
| Sail area - Cutter | Main - 362 sq. ft. Foretriangle - 429 sq. ft. Total - 791 sq. ft. |
||
| Sail area - Ketch | Main - 334 sq. ft. Foretriangle - 392 sq. ft. Mizzen - 74 sq. ft. Total - 800 sq. ft. |
||
| Hull type: Multi-chine sheet steel hull with full length
internal ballast keel. Sail type: Masthead cutter or ketch rig with club-footed jib. Power: Single inboard diesel engine of 35-40 shp with vee-drive. Ballast: Concrete and steel scrap Construction: Welded steel hull, keel, deck and cockpit with concrete and scrap steel ballast. Cabin superstructure, cockpit, and interior of lumber and plywood with exterior surfaces sheathed in fiberglass or equivalent. |
|||
