Yankee Star-FG
|
||
|---|---|---|
| #217 #218 |
a 40' double cabin aft cockpit sailboat | Build in COLD-MOLDED or FIBERGLASS |
| Characteristics | |||
|---|---|---|---|
| Length overall (on deck) | 40'-0" | ||
| Length overall (with bowsprit) | 43'-1" | ||
| Length waterline | 31'-8" | ||
| Beam | 12'-1" | ||
| Draft | 5'-7" | ||
| Freeboard forward | 5'-4" | ||
| Freeboard aft | 3'-9" | ||
| Displacement (at D.W.L.) | 18,500 lbs. | ||
| Ballast weight | 6,955 lbs. | ||
| Cabin headroom | 6'-1" to 6'-6" | ||
| Fuel capacity | 60 gals. | ||
| Water capacity | 110 gals. | ||
| Sleeping accommodations | 8 | ||
| Cutter sail area | Main - 340 sq. ft. Foretriangle - 409 sq. ft. Total - 749 sq. ft. |
||

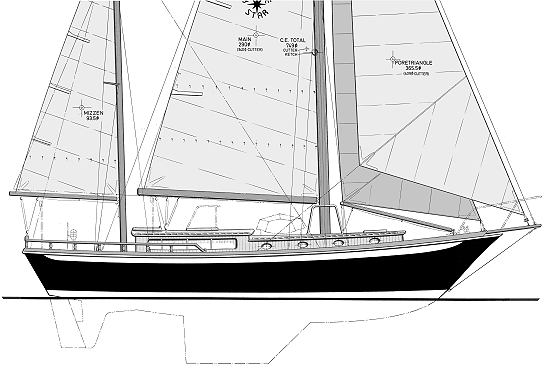

| Ketch sail area | Main - 290 sq. ft. Foretriangle - 365.5 sq. ft. Mizzen - 93.5 sq. ft. Total - 749 sq. ft. |
||
| Hull type: Round bilge hull with fixed ballast keel and
separate rudder/skeg. Plans available for "one-off" fiberglass
construction using PVC foam sandwich core or fiberglass planking with
fiberglass laminates, or for molded plywood, with cold-molded veneers as an
alternate. Ballast: Lead, iron, or steel. Sail type: Masthead ketch or cutter with bowsprit and club-footed jib. Power: Single inboard diesel engine of 25 to 35 SHP with suitable reduction gear. |
|||
