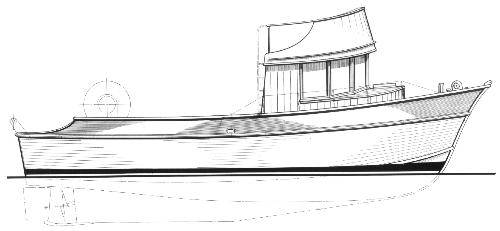

Dauntless
|
#876
#877 |
a 36' commercial work
boat |
Build in
FIBERGLASS
or PLYWOOD |
| Characteristics |
| Length overall |
35'-8" |
| Length waterline |
31'-3" |
| Beam |
13'-9" |
| Hull draft |
3'-6" |
| Displacement (designed) |
17,400 lbs. |
| Freeboard forward |
6'-6" |
| Freeboard aft |
3'-3" |
| Height overall |
15'-10" |
| Headroom |
6'-5" min. |
| Hold volume |
200 cu. ft. |
| Cockpit size |
4' x 11' |
| Fuel capacity |
250 gals. (375 opt.) |
| Cruising range |
approx 875 miles (250 gals. fuel) |
| Fresh water capacity |
20 gals. |
| Sleeping accommodations |
2 |
- Hull type: Semi-displacement, hard chine hull with efficient speed range to
10 knots. Construction can be double diagonal cold-molded plywood or solid wood
on bottom, and double diagonal plywood or wood on sides. Fiberglass hull
construction optional, using either fiberglass planking or PVC foam sandwich
construction. Balsa core construction can be used but not detailed.
- Power: Single gasoline or diesel motor of approximately 100 continuous
shaft horsepower with suitable reduction gear. Twin motors may be used, but are
not as practical or economical, and hence not recommended.
- Can the hull be extended or shortened? Yes. Up to 10% by re-spacing the
frames from the aft end of the stem to the transom a proportional amount. We do
not recommend increasing the beam.
|
