Malahini by Jan Hoffmann, Neukirch, Germany

15 March 2011

Here is my story about building the Malahini.

For long time it was my wish to own a wooden boat like the Italian RIVA or a Swiss BOESCH boat. But as I am no super rich person it was out of question to have one.

4 years ago we moved to a house were I got the possibility to use a garage for building a boat. The size of the area (garage) and the point that we need a special exhaust emission standard for the Lake of Constance (it is nearly impossible to put an inboard in a self-made boat without spending a lot of money to get an allowance regarding emission standard. But this is swollen bureaucracy) were the guidelines for choosing the plan. So I decided to buy the Malahini plans.

After checking the plans and buying the first lumber I started in autumn 2006!

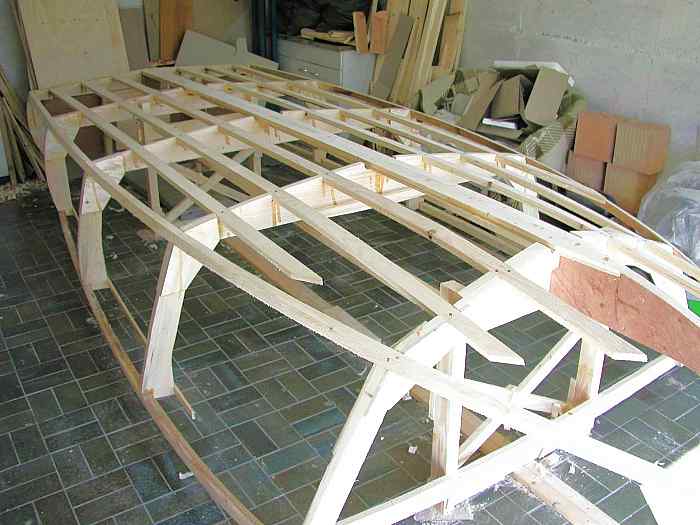

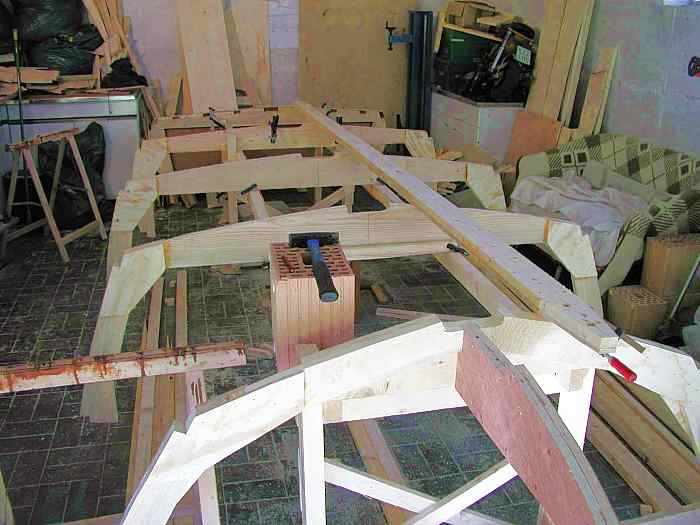

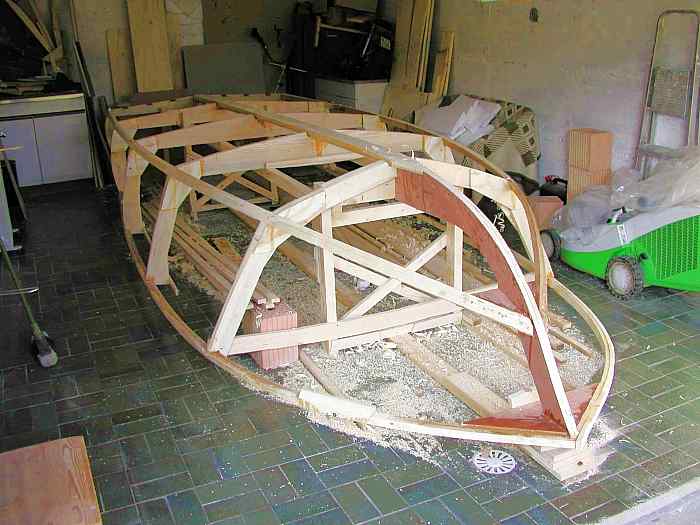

Framework was done during the first winter and finished mid of April 2007. Since January 2007 I have another “time-consuming hobby”. My son Leon.

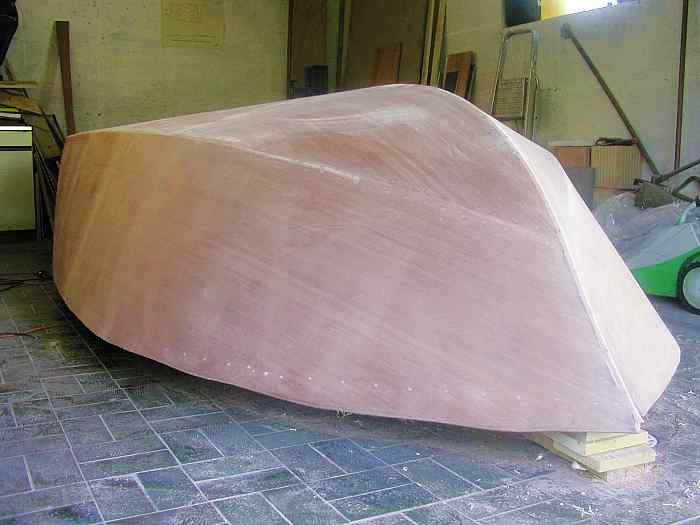

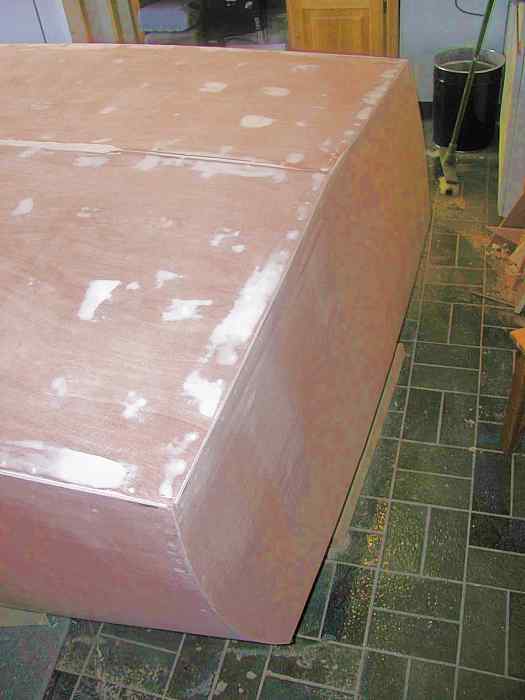

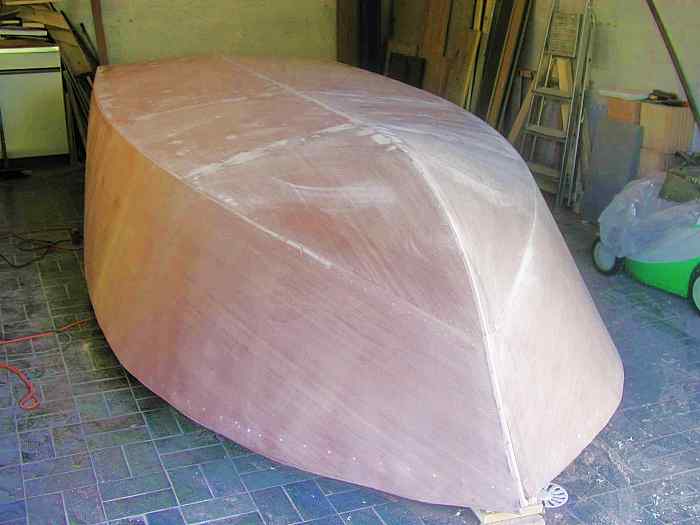

July 2007: finished the planking with sheet mahogany plywood. If you fair the framework well it’s quite easy to fix the plywood sheets. But you need tons of screws! …and than…sanding, sanding…..

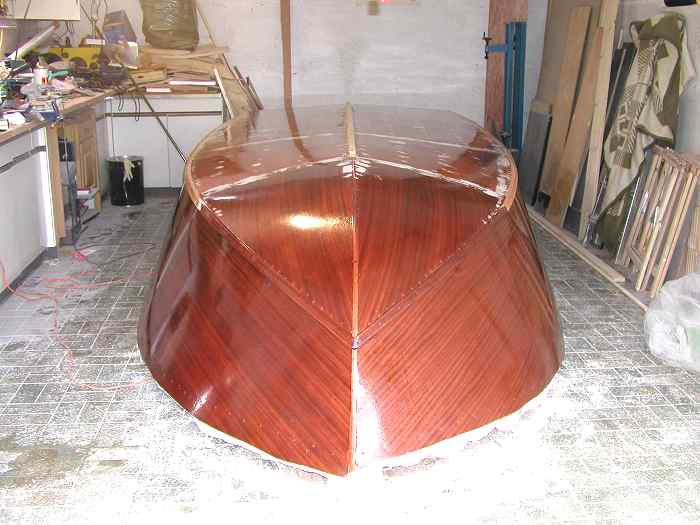

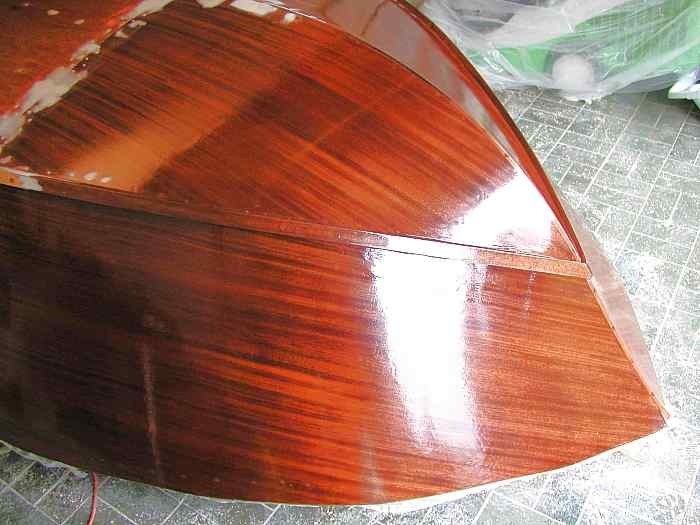

…and after a layer glass fibre mat and epoxy …. It is really fantastic how the mahogany wood will look like.

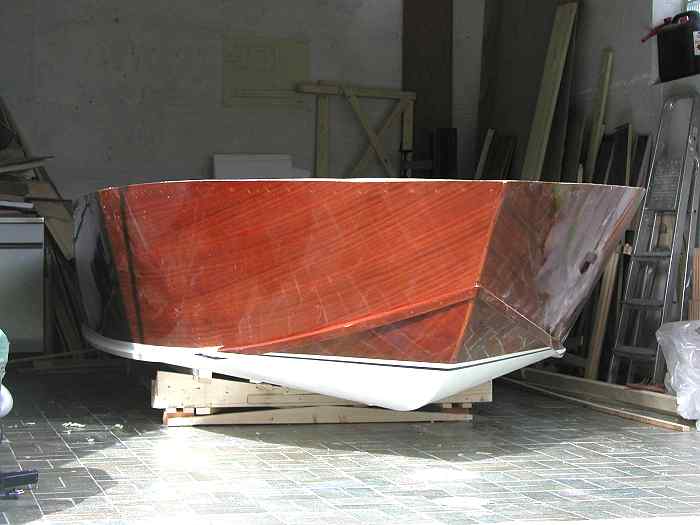

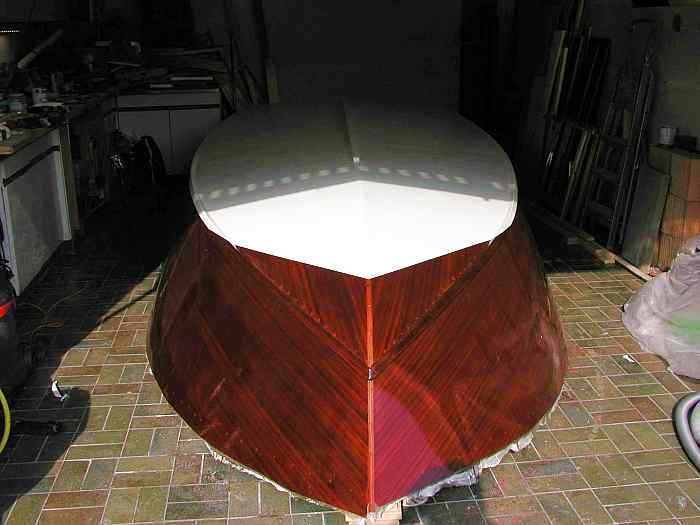

I painted the underwater hull with a layer of 2K coppery paint and than a white Teflon Antifouling. Meanwhile I turned the hull. I have no picture of that adventure because I did it on my own. (Pulley)

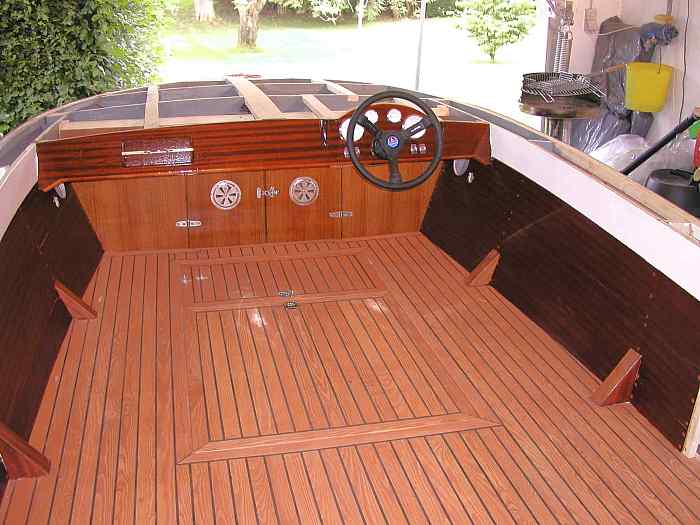

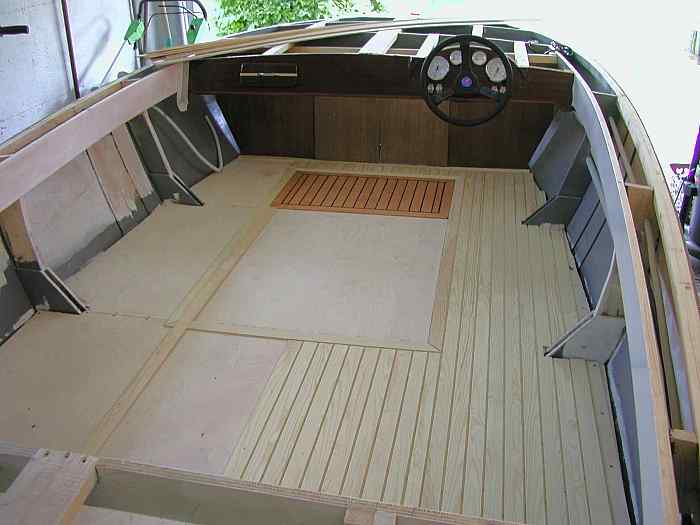

I bought some nice instruments and started the interior work. I decided to make stripped deck and to close the front space to have a lockable room.

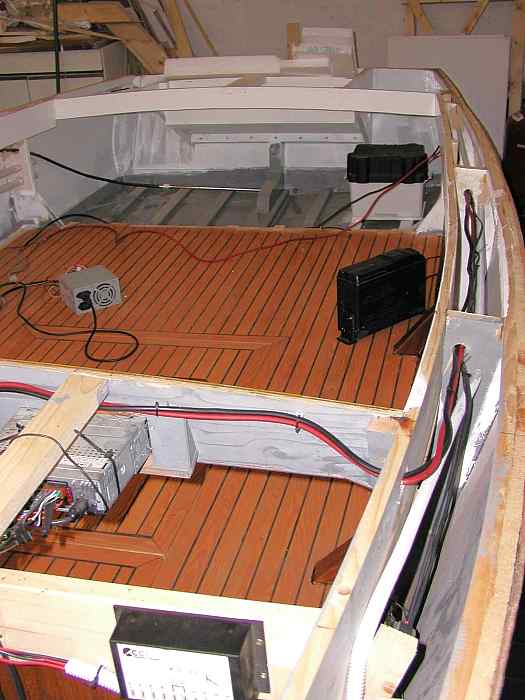

Than the electrical work has to be done. I hated this part because electricity is not my friend!

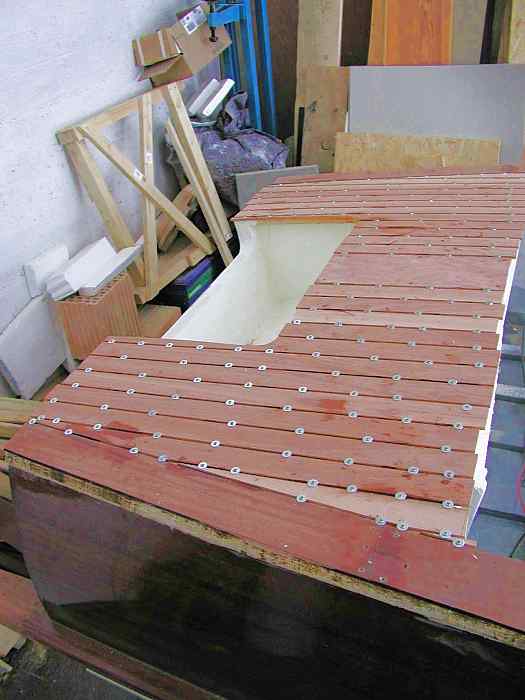

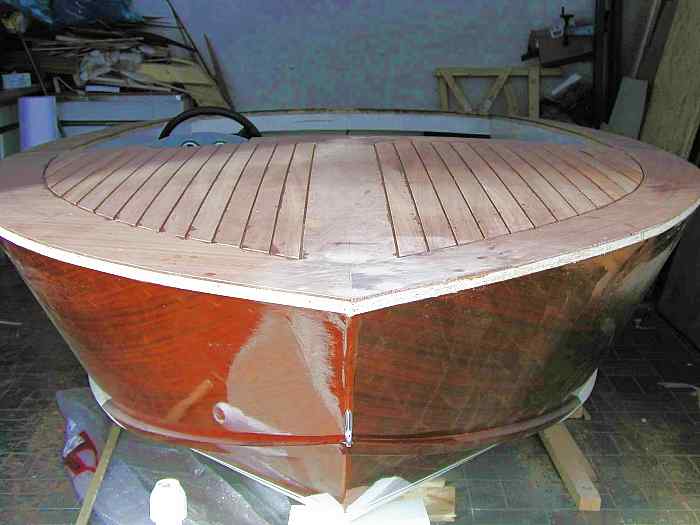

November /December 2008. Decking is nearly finished now. Time to give the whole project some colour (and varnish!!!)


And as you can see you need not that much space to build a boat.


Summer 2009. I build a half round seat bench to have the opportunity to install a little desk to have some „goodies” on board as you can see on a later picture.


With extending the bumper rails in the aft it was possible to build a small swimming platform where I can attach a ladder to get much easier out of the water.


Inspired by some pictures from several wooden boat builders and their projects I decided to build the window frame also out of wood. The other reason for that is it’s nearly impossible to get those chrome windshield brackets which are typical for the vintage US wooden boats here in Europe. (For acceptable costs of course) And this was the first time SHE lounges here nose in the wind.


Late spring 2010. And than the first time out of the garage on the trailer in our garden


July 2010: First Launching. Everything was fine and (that’s of course the fear of every boat builder) She swims!


Summer 2010: We have had really much fun with the “Fafa Piti” (Polynesian word for manta ray – results from our honeymoon trip) this summer.


Now I like to thank you all at Glen-L for the great help you and all the other boat builders with their pictures and projects on the homepage provided to me during the years of boat building. Also for the great support and the fantastic plans. Thank You!

It’s always a pleasure to read the WebLetter and all other news.

If you have any questions or need more information/pictures don’t hesitate to contact me:

Best regards from the Lake of Constance/Germany.


11 July 2011 Update

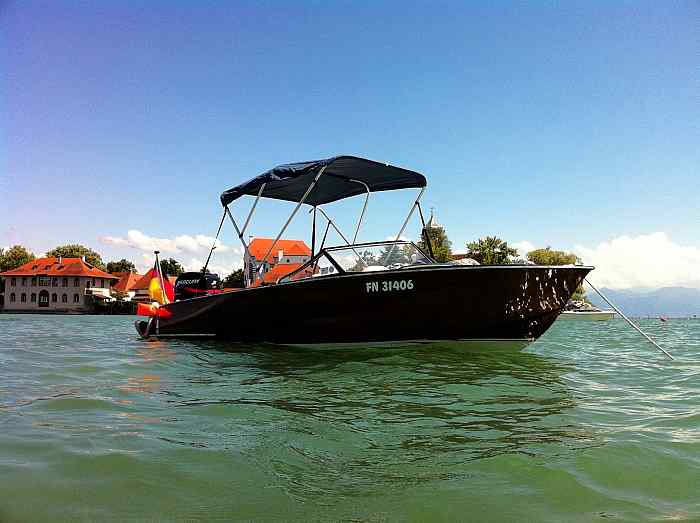

The newest from today. Was a nice sunny swimming trip.

I just startet to build the Bravado. Love your plans and support!

Thank you.
