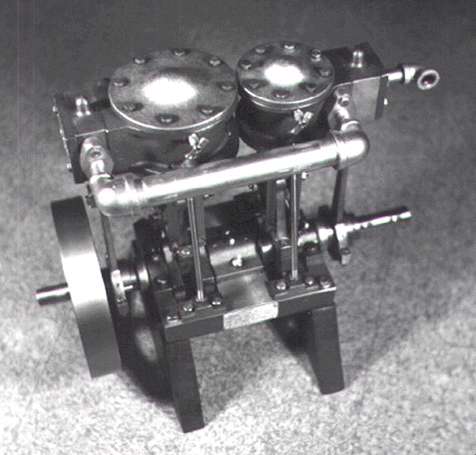

Reliable 5 hp Compound Steam Engine
Will drive a 15' to 25' boat at 6 to 10 mph, depending on its displacement and design. Available in casting kit or as a finished engine. (www.pioneer.net/~carlich)
|
|
|
Reliable 5 hp Compound Steam Engine |
|
| Horse power at 125 psi and 600 rpm | 5 |
|---|---|
| Cylinders | 2 in line |
| Sizes of cylinders | 2.5" and 3.75" x 2" |
| Rated rpm | up to 750 |
| Rated steam pressure | up to 150 psi (10.3 bar) |
| Steam consumption | 140-150 lbs/hour (63.5 - 68 kg) |
| Reversing gear | Slip eccentrics |
| Engine weight | 87 lbs (39.4 kg) |
|
Will drive a 15' to 25' boat at 6 to 10 mph, depending on its displacement and design. Available in casting kit or as a finished engine. (www.pioneer.net/~carlich) |
|
