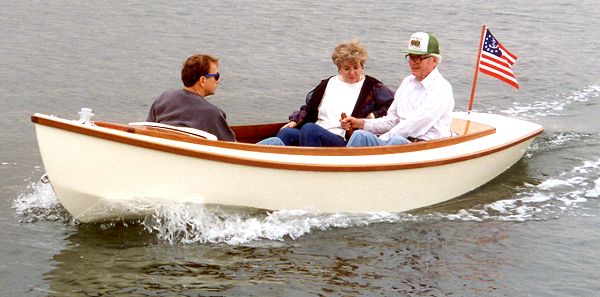

Amp Eater
|
| #511 |
a 13' electric boat |
Build in STITCH & GLUE
PLYWOOD |
| Characteristics |
| Length overall |
13' 4" |
| Beam |
5' 2" |
| Midships hull depth |
24" |
| Bare hull weight, no deck |
165 lbs. |
| Hull draft |
10" |
| Displacement |
1012 lbs. |
| Cockpit size (approx.) |
3 1/2' x 7' |
| Average Passengers |
2-4 |
- Hull type: Vee bottom, developed for sheet plywood planking, assembled by
the Stitch-N-Glue method.
- Power: Electric DC motor 1/2 to 1 hp operating on deep cycle batteries
connected in series to develop 24-36 volts. Belt driven propeller shaft.
- Can the hull be extended or shortened? No. We also do not recommend
increasing the beam.
- Trailer: Designed for Glen-L Series 1000 boat trailer plans.
|
