Glen-L 13 |
||
|---|---|---|

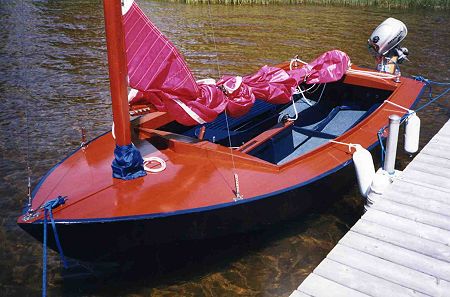

| #117 | a 13' cat-rig sailboat | Build in PLYWOOD |
| Characteristics | |||
|---|---|---|---|
| Length overall | 12'-9" | ||
| Beam | 5'-10" | ||
| Depth amidships | 2'-2" | ||
| Draft (board up) | 9" | ||
| Draft (board down) | 3'-6" | ||
| Weight (approx.) | 260 lbs. | ||
| Cockpit size | 7'-3" x 4'-8" | ||
| Average passengers | 2-4 | ||
| Sail area | 92 sq. ft. | ||
| Hull type: Vee bottom hard chine hull developed for 1/4"
sheet plywood planking. Sail type: Cat-rig with centerboard. Power: Short shaft outboard motor to 5 hp. Trailer: Trailer plans included. |
|||
| Photographs | Bill of Materials | Hardware Notes | Notes | Return |
|---|
